Hex bolts have a chamfered point to aid insertion into a tapped hole or nut. Length is measured from under the head. Stainless steels are used for their corrosion resistance, high-temperature strength, scaling resistance, and low-temperature toughness. These properties account for their extremely wide use in practically every industry. Austenitic Stainless Steels are alloys of iron and carbon that contain between 16% and 30% Chromium, a maximum of 0.15% carbon, along with Nickel (or Manganese), and other alloying elements. The chromium, which helps develop a passive surface oxide film, provides corrosion resistance in stainless steels. Austenitic Stainless Steels are designated by a 3 digit SAE Stainless Steel Grade beginning with the number 3 (e.g. 304, 316). Another common naming convention for Austenitic Stainless Steels are 18/8, 18/10, 18/0, etc. where the 18 refers to the % of Chromium and 8 to the % of Nickel contained in the material. Hex head fasteners can be driven with simple wrenches, and require minimal clearance above the fastener because they can be driven or loosened from the side.
Features:
Hex Bolts feature a chamfered point
Stainless Steel is suitable where formability and cost are important considerations
Hex head for easy driving

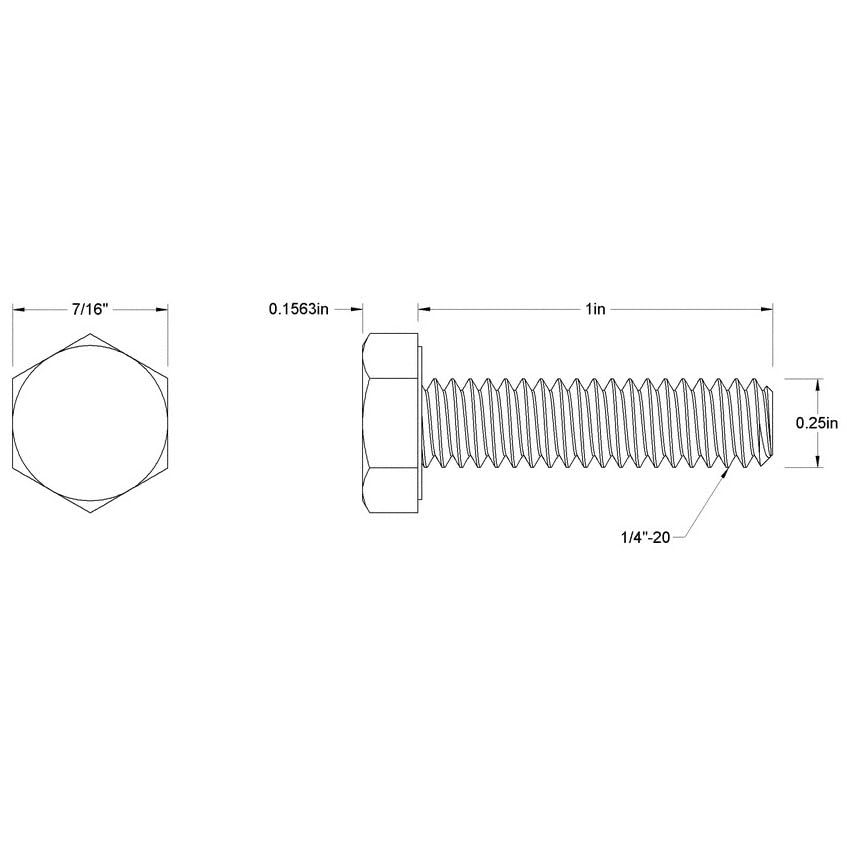

Length is measured from under the head
Coarse threads are better for brittle materials, and will assemble and disassemble more quickly than fine threads
